Step-by-Step Replacing Rear Axle Seal & Bearing w/ABS (1st gen Tacoma or 3rd gen 4Runner)

I recently discovered a dreaded gear oil leak on my 4Runner, and knew it meant only one thing - it was time to change the rear axle seals (and bearings and brake shoes since they were now saturated with oil). In addition to the story of the 4Runner repair, and later the Tacoma repair, I figured a detailed set of instructions for anyone wanting to tackle this themselves would be nice to put together, since it's hard to find that written down in one concise place (maybe even impossible before now).

This is of course based on two amazing resources - first and foremost are some videos by Timmy, which are great. Second, is the Factory Service Manual (FSM) description, but varies slightly (to make things easier) and doesn't require flipping back and forth between many different sections.

So let's get started.

Gathering the Parts...

As you can imagine with a job like this, there are quite a few parts and tools you need to complete it quickly and safely! I've tried to break down what's required vs. optional for you, though of course someone else's situation might mean suggest differently than I have. If in doubt, I'd purchase items in this list and return them, so you aren't stuck in the middle of the fix, waiting for a part or tool you don't have.

Required Parts

Optional Parts

Brake Parts

  • (1 kit) Brake shoes (04495-35230) - contains components for both L and R brake shoe replacement. Optional, but recommended if you're doing the job because you've had gear oil leak onto the brake shoes (vs. as preventative maintenance).

...and Tools

As far as tools go, there are several specialty service tools (SSTs) that you'll need to complete the job. While these tools are technically optional, and you may be able to fabricate some stand-in yourself, I cannot stress enough how much easier they made this job. If you're tackling this yourself, buy all of these tools - especially the Rear Wheel Axle Bearing Puller & Tone Ring Tool/Installer - it is frankly one of the most well-designed tools I've used for its purpose. They will double the cost of the job, but it's still less than half of having Toyota do it, and you have the tools for next time and other jobs!

Specialty Tools

OTC Seal driver and the *amazing* Rear Wheel Axle Bearing Puller & Tone Ring Tool/Installer.

OTC 4579 Seal Puller Kit - this slide hammer makes pulling the old seals easy and prevents any damage to your axle housings. It feels expensive, but is worth it (and versitile for other projects).

Standard Tools and Supplies

Of course, in addition to SSTs, you'll need a reasonably well-equipped shop to tackle this job. Here's the additional list of tools that I used to complete the job, as well as having additional tools at my disposal in case I needed them.

  • Floor jack.
  • (2) 6 ton jack stands.
  • Misc sockets (I recommend this set from Williams, a Snap-On brand)
    • 10mm socket - to remove the ABS sensor from the axle housing.
    • 14mm deep socket - to remove nuts holding brake drum to axle housing.
    • 24mm socket - to remove diff fill/drain plugs.
    • Ratchet, Extensions, and breaker bar as necessary.
    • 5/8" deep socket - to use in the press when pressing on various components.
  • 14mm box end wrench (set) - to remove nuts holding brake drum to axle housing.
  • 10mm flare nut wrench (set) - to remove brake line fittings from rear drum.
  • Snap ring pliers - to remove/install the snap-ring for the outer retainer.
  • 3mm, 4mm, 5mm Allen wrench (set) - to measure placement of the inner retainer on re-installation.
  • Assortment of vacuum caps - to prevent brake fluid from leaking out of rear lines once disconnected.
  • Brake cleaner - to clean the brake components, as well as axle, throughout the process.
  • Grease - for installing new parts.

Doing the Job

With all the parts and tools gathered, it's time to get to work. Perhaps obviously, the job is mostly a bunch of removal of parts, and then a bunch of installation of those same parts - or rather, installation of replacement parts. This list of steps is just that - a list of steps (which makes it a great resource to print off and reference when you're doing the job). If you're curious about what a step looks like, I suggest reading the story of my shop day, or watching this video to see how something is done.

As of Sep 2021, I've added photos to this guide, as it just seems useful.

Prep the Vehicle

  1. Jack up rear end with floor jack.
  2. Place a 6 ton jack stand under each side of the rear axle, ensuring that the wheels and tires are in the air.
  3. Chalk the front tires so the vehicle doesn’t move.
  4. Ensure that the emergency brake is OFF.
  5. Remove the rear wheels.

Disconnect Parking Brake and Brake Line

  1. Remove the small compression clip that attaches the e-brake cable to the rear brake drum
  2. Remove the small pin and wobble washer that holds the e-brake cable to the rear brake drum.
  3. Pull the e-brake cable away from rear brake drum.
  4. Using at 10mm flare nut wrench, loosen the rear brake line where it enters the rear brake drum. Note: be sure to use a flare nut wrench to get a better grip on the compression fitting.
  5. Prep a vacuum cap to place on rear brake line once it is removed, and place a rag under the brake line to catch any brake fluid.
  6. Remove the rear brake line and place a vacuum cap over the end so that brake fluid does not leak out (as quickly).

Remove the ABS Sensor

  1. Using a 10mm socket and any necessary extensions, remove the bolt holding the ABS sensor.
  2. Pull out the ABS sensor, which is held in place with a small o-ring. This will provide resistance as you pull it out.
  3. Place a plastic bag around the ABS sensor to keep it clean while you work.

Removing the Brake Drum

  1. Remove brake drum. Note: this may require some tapping with a mallet, or loosening the automatic adjuster if the drum is too tight / rusted to the axle housing. If neither of those methods work, use two, M8-1.25x50mm bolts threaded through the drum to press it off.
  2. Use brake cleaner and catch container to clean off the rear brake drums.

Drain the Rear Differential

  1. Using a 24mm socket, loosen the fill plug at the top of the rear diff, to ensure that you will be able to refill the diff once it is drained.
  2. Using a 24mm socket, remove the drain plug at the bottom of the rear diff.
  3. Remove the fill plug at the top of the rear diff, to drain the oil more quickly.

Remove the Axle from Housing

  1. Use a 14mm socket (and/or box end wrench) and breaker bar to loosen the four (4) 14mm nuts that hold the brake drum to the axle housing.
  2. Once all four nuts are loose, remove them completely.
  3. With all four nuts removed, pull brake drum and axle out of axle housing.

Press Axle Out of Inner Retainer and ABS Tone Ring

  1. Place the axle, drum side down, on a surface where you can pound out one of the four studs that secure the brake drum to the axle housing. Note: if you have an old brake rotor, it can be used as a good platform on which the brake drum can stand/balance.

  2. Screw one of the 14mm nuts that was removed earlier onto the stud opposite the bell crank until it is even with the end of the stud. Note: you can pound out any stud, but this is the one that is the easiest to access on both sides of the brake drum.

  3. Pound out the stud opposite the bell crank. Note: as you do this, the bearing may also pop slightly out; this is OK.
  4. Remove the nut, then pull the stud out the other side of the brake drum.
  5. Move the red ABS tone ring capture plate from the Axle Bearing Puller into place by sliding it under the ABS tone ring, via the space made by removing the stud.
  6. Slide the main cylinder of the Axle Bearing Puller over the axle shaft, so the square side aligns with the red capture plate.
  7. Secure the studs from the red ABS tone ring capture plate through the Axle Bearing Puller using two washers and a nut on each corner.

  8. Secure the axle assembly in the press with the brake drum down, and the other end of the Axle Bearing Puller captured by the press plates. Note: If using the Harbor Freight press, place the cross-member at the 4th position down from the top.
  9. Ensure that the press is aligned with the end of the rear axle before driving the axle down.
  10. Place a crash pad under the press so that as the brake and axle assembly fall to the ground, they hit some padding, rather than a hard surface.

  11. Begin pressing the axle down. Note: you should hear a crack/snap/pop or two as various components ‘release.’ This is normal.
  12. Continue pressing until brake and axle assembly falls out the bottom of the press. Note: the ABS tone ring and inner retainer will be captured by the red ABS tone ring capture plate.
  13. Remove the axle from the press, as well as the Axle Bearing Puller tool.
  14. Remove the 4 nuts securing the Axle Bearing Puller tool to the red ABS tone ring capture plate. Remove the captured ABS tone ring and inner retainer. Set aside. Note: this retainer will become your outer retainer on re-assembly.

Press Axle Out of Outer Retainer

  1. Place brake drum and axle assembly on workbench, drum side down.
  2. Insert stud removed earlier from the bottom of the brake drum to begin re-installation.
  3. Place several washers (four or more) over the stud to act as spacers. Note: the washers should be tall enough to cover any unthreaded portion of the stud.
  4. Using one of the 14mm nuts and a 14mm deep socket, tighten down on the stud until it has completely pulled back through to its original position.

  5. Once the stud has pulled fully into place, remove the nut and washers.
  6. Using a pair of snap-ring pliers, remove the snap ring that holds the outer retainer to the bearing. Note: it is OK to mar the axle shaft during this process, but do not mar the surface of the outer retainer.

  7. Place the Axle Bearing Puller tool over the axle shaft and align the holes with the four studs. Note: if the bearing is not fully seated at this point, there may not be enough threads to capture the studs. In this case, turn the axle upside down and drop it on a piece of 2x4 (or other “soft” surface) to reseat the bearing.
  8. Using two flat washers and a 14mm nut per stud, secure the tool to the backing plate.

  9. Secure the axle assembly in the press with the brake drum down, and the other end of the Axle Bearing Puller captured by the press plates. Note: If using the Harbor Freight press, place the cross-member at the 4th position down from the top, like before.

  10. Ensure that the press is aligned with the end of the rear axle before driving the axle down.
  11. Place a crash pad under the press so that as the brake and axle assembly fall to the ground, they hit some padding, rather than a hard surface.
  12. Ensure that you have removed the snap ring from the axle so the retainer and bearing can travel up the axle shaft.
  13. Begin pressing the axle down. Note: you should hear a crack/snap/pop or two as various components ‘release.’ This is normal.
  14. Continue pressing until brake and axle assembly falls out the bottom of the press.

  15. Remove the axle from the press.
  16. Remove the Axle Bearing Puller tool (and brake drum) from the press.
  17. Using a 14mm socket, remove the four nuts securing the Axle Bearing Puller tool to the brake drum. Remove the captured outer retainer. Set aside. Note: this will become your inner retainer on re-assembly.

Remove Axle Bearing from Brake Drum

  1. Set brake drum on workbench with axle bearing on bottom. Note: hang the bell crank over the side of the workbench so it does not cause the drum to be wobbly when set down.
  2. Remove the dust seal using a set of pliers by simply pulling it up towards you.
  3. Place the press sleeve that comes with the Axle Bearing Puller, with the long side of the cylinder down, on the inner race of the bearing.

  4. Place a steel plate on top of the press sleeve to evenly distribute the force around the edge of the sleeve.
  5. Hit the center of the steel plate with a hammer to push the bearing out the back of the brake drum. Note: this will take almost no pressure - do not hammer hard.
  6. Clean out the inner bore of the bearing case.

Install New Axle Bearing and Dust Shield in Brake Drum

  1. Smear a bit of grease inside the clean bore where the bearing will sit.
  2. Smear a bit of grease on the outer race of the new bearing.
  3. At the press, prepare to press the bearing into the brake drum with the bore up under the press. Note: if using the Harbor Freight press, place the lower bar at the 3rd hole, then stack a press plate, the press sleeve that comes with the Axle Bearing Puller, and the 4”x4” steel plate under the bottom of the brake drum.

  4. Set the bearing on top of the bore and ensure that it is as flat/even as possible.
  5. Place the 3” ABS cleanout, with cap on the outer race of the bearing, and ensure the cap is centered under the press.
  6. Slowly (using only finger pressure) apply pressure to the ABS cleanout to fully seat/press the bearing into the bore. Note: the bearing should go in relatively easily; you may not even need the press. Watch the ABS cleanout to ensure that no pressure is building up, and to ensure that the bearing is going in straight.

  7. Remove the brake drum from the press and set it on the workbench, bearing side down.
  8. Smear a bit of grease inside the bore where the dust shield will sit.
  9. Insert the dust shield (by hand, no tools needed).
  10. Smear a bit of grease on the inside of the dust shield, since it will ride on the axle once installed.

Re-installing Outer Retainer Ring and Snap Ring.

  1. Clean the axle well with brake cleaner.
  2. Place the axle on the workbench, studs down. Note: utilize an old brake rotor to hold it more easily.
  3. Smear some grease on the axle, on the widest (polished) part of the axle.
  4. Smear some grease on the inner race of the bearing.
  5. Gently slide the brake drum over the axle, bearing side up. Note: be careful not to displace the bearing in this process, as it’s not pressed into the brake drum.
  6. Smear some grease on the inner bore of  the outer retainer. Note: recall that the retainers will SWAP positions on reinstall. The original inner retainer will become the outer retainer.
  7. Slide the outer retainer over the axle with the bevel facing up (away from the bearing).
  8. Place the press sleeve that comes with the Axle Bearing Puller, with the long side of the cylinder down, on the outer retainer ring.

  9. Place the Axle Bearing Puller in the press, square end down, capturing the rectangular end between the lower crossmember.
  10. Insert the axle assembly into the Axle Bearing Puller from the top, so that the press sleeve rests on the Axle Bearing Puller tool.
  11. If necessary, raise the lower crossmember so that the assembly is fully supported and can be pressed down. Note: if using the Harbor Freight press, the crossmember will be at the third hole from the top.
  12. Insert the press plates between the lower crossmember and the rectangular foot of the Axle Bearing Puller tool, to better support it (vs. simply using the crossmember for support).
  13. Place and center a 5/8" deep socket on top of the axle - between the wheel studs - to press on.
  14. Ensure that everything is vertically aligned, then press the axle into the outer retainer. Note: this should go smoothly until the retainer is fully seated.

  15. Using snap ring pliers, install a new snap-ring into the groove that has been exposed once the outer retainer is fully installed.

Re-installing the ABS Tone Ring and Inner Retainer

  1. Place the axle on the workbench, studs down. Note: utilize an old brake rotor to hold it more easily.
  2. Smear some grease on the axle, on the widest (polished) part of the axle.
  3. Smear some grease on the inner bore of both the ABS tone ring and inner retainer.
  4. Slide the ABS tone ring over the axle, with the “solid” side up (towards the rear diff).
  5. Slide the inner retainer over the axle, with the bevel down toward the ABS tone ring. Note: this is the opposite orientation compared to OEM/removal. However, it is better given a redesign that has taken place to the axle seal since 2003.

  6. Place the press sleeve that comes with the Axle Bearing Puller, with the long side of the cylinder down, on the inner retainer ring. Note: the small notch on the press sleeve will allow you to see how far the ABS tone ring and inner retainer need to be pressed.
  7. Place the Axle Bearing Puller in the press, square end down, capturing the rectangular end between the lower crossmember.
  8. Insert the axle assembly into the Axle Bearing Puller from the top, so that the press sleeve rests on the Axle Bearing Puller tool.
  9. If necessary, raise the lower crossmember so that the assembly is fully supported and can be pressed down. Note: if using the Harbor Freight press, the crossmember will be at the third hole from the top.
  10. Insert the press plates between the lower crossmember and the rectangular foot of the Axle Bearing Puller tool, to better support it (vs. simply using the crossmember for support).
  11. Place and center a 5/8" deep socket on top of the axle - between the wheel studs - to press on.
  12. Ensure that the small notch on the press sleeve is facing the press operator.

  13. Ensure that everything is vertically aligned, then begin pressing the inner retainer onto the axle.
  14. As the inner retainer is being pressed onto the axle, measure the amount of polished axle showing under the inner retainer, until 3mm of polished axle is showing. Note: use a 3mm allen wrench for this measurement.
  15. Remove the axle assembly from the press and verify the 3mm measurement.

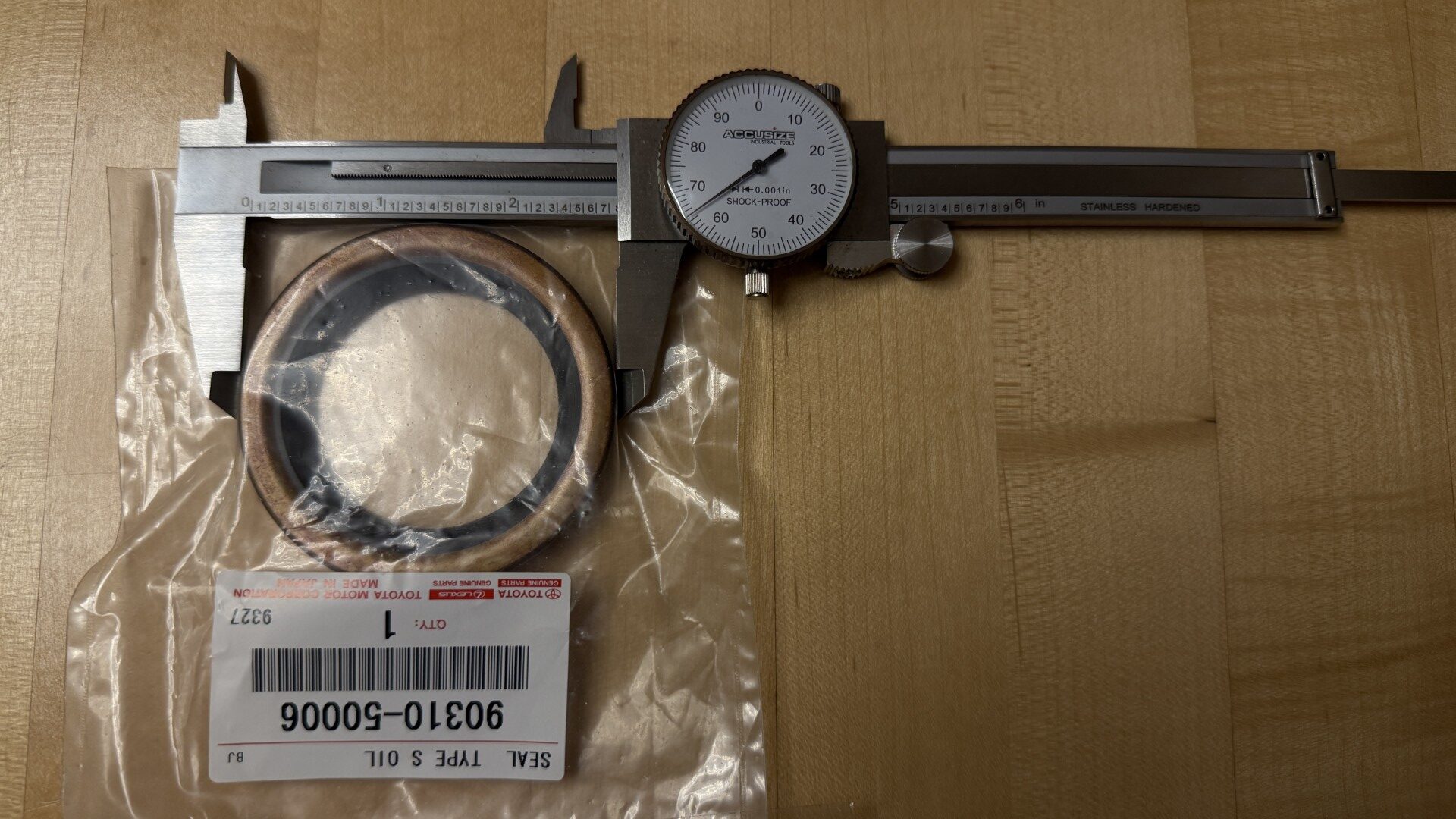

Remove Old Axle Seal

  1. Remove the old axle seal from the axle housing by pulling it out using a seal puller.

Install New Axle Seal

  1. Using the OTC 4507 Seal Driver Kit, select a press plate that matches the outer diameter of the new axle seal.
  2. Oil the outer surface of the seal and insert it as squarely as possible with your fingers.
  3. Lightly tap the seal using the seal driver until it fully seats. Ensure that you are pounding it in straight. Note: freeze the seal for 30 minutes prior to installation to shrink it slightly and make installation easier.

Ensure That the Axle Seal and Inner Retainer Align Correctly

  1. Use a sharpie to make lines on the inner retainer.
  2. Insert the axle assembly into the axle housing and tighten four, 14mm nuts to the four studs.
  3. Spin the axle in the axle housing several times in order to ensure that the axle seal is contacting/rubbing the inner retainer (and rubbing off the sharpie marks).
  4. Remove the four, 14mm nuts and remove the axle assembly from the axle housing.
  5. Ensure that the axle seal is approximately in the center of the inner retainer, as indicated by the sharpie mark being removed in that position on the retainer.

  6. If the inner retainer is not aligned correctly, use the Axle Bearing and Tone Ring Puller or Bearing Driver to pull/push the inner retainer and tone ring into the correct position - so that when fit into the axle seal, the center of the sharpie line is worn away.

Reinstalling the Axle into the Housing

  1. Remove the large rubber o-ring on the outside of the axle housing

  2. Install a new large rubber o-ring on the outside of the axle housing
  3. Using a 14mm deep socket and 14mm box wrench, reinstall the four, 14mm nuts on the end of the studs that hold the backing plate to the axle housing. Torque to 48 ft-lbs.

  4. Reinstall the ABS sensor, and 10mm bolt that holds it in place. Cinch it up snug; no torque spec.
  5. Reconnect the brake line using a 10mm flare nut wrench. Cinch it up snug; no torque spec.
  6. Reconnect the e-brake cable using the original clip.

Finishing Up

  1. Reinstall the brake drum; use a mallet if needed.
  2. Reinstall the rear diff drain plug with a new crush washer.
  3. Refill the diff with 80W-90 gear oil.
  4. Reinstall the rear diff fill plug with a new crush washer.
  5. Bleed the brakes, since lines were disconnected. Note: Bleed in the following sequence: passenger rear, driver rear, passenger front, driver front.
  6. Reinstall the wheels (torque lug nuts to 89 ft-lbs) and lower the truck.



19 Comments

  1. Wyatt
    Wyatt June 23, 2020

    Amazing guide! Followed this exactly and now my baby is back on the road, and better than ever.

    Thank you!

  2. Noni
    Noni September 18, 2020

    One of best website for 1st Gen Tacomas around. I tow a boat (about 2200lbs), very short distances, and occasional loads. On average, how often can i expext to replace these seals? Its a very expensive job where I live and I just did one last year! Thanks!

    • turbodb
      turbodb September 20, 2020

      Hi Noni, Assuming that your axles and axle housings are in good shape, and the job is done correctly, you shouldn't have to replace the axle seals very often - they should last over 100K miles, easily. Many owners never have to replace them. When you have to do one however, it's generally a good idea to do both - they are usually subject to the same stresses, etc. Hope that helps!

  3. Trey
    Trey December 6, 2020

    So you stopped posting pictures as soon as it started to matter.....thanks alot

    • turbodb
      turbodb December 6, 2020

      Hey Trey - I think you might have misunderstood the point of the article. I lay it out at the top under "Doing the job": This list of steps is just that - a list of steps (which makes it a great resource to print off and reference when you're doing the job).

      If you read another sentence there, it tells you where the photos are: If you're curious about what a step looks like, I suggest reading the story of my shop day.

      There, you'll find pictures of basically every step. But you probably don't want all those in a print out, so that's why they aren't in the printable list.

      So yeah dude, you're welcome. ?

  4. JeffreyE.
    JeffreyE. October 31, 2021

    Turbodb, this looks like an adventure! Great pictorial
    Perhaps I will be one of those taco guys that never need to do this, currently have 218k/25yrs on my old rig
    But I had a mess of repairs this year of '21 already
    Crankshaft pulley split whilst on the highway roll
    Wheel bearing front driver side went after that
    Then the clutch slave master cylinder
    The clutch bearings are starting to get sketchy now LOL
    So yeah hopefully the rear axle seal on the rig stays good, at least until I recover from replacing front steering arm bushings and finally repair the bad frame coating boo!!

  5. Late Night
    Late Night November 16, 2022

    Torque spec for ABS sensor: 8 N.m / 71 in.lbs
    Torque spec for brake line: 15 N.m / 11 ft.lbs

    Reference: 2002 Toyota Runner FSM

  6. European Auto Solutions P.R.
    European Auto Solutions P.R. July 27, 2023

    well thank you very much, just by notating the orientation of the retainer after Toyota did the seal upgrade is a huge plus. thank you for taking the time for helping out even for shops like ours that want to do things the right way. have a blessed day. overall the best step by step there is out there.
    My situation is that after i removed everything with tools I've notice a significant cut with a grinder and everything looks new but it came to our shop because it still leaking. should i replace the axle. Thats going to be our recommendation but would like to know your opinion its an expensive one.

    • turbodb
      turbodb July 27, 2023

      Glad that the guide could help you! Depending on where the cut with the grinder is, I think I'd replace the entire axle, especially if the vehicle will be used off road or in remote locations where a tow isn't cheap/easy.

      Also, if the grinder cut is anywhere on the polished portion of the axle shaft, it will prevent the entire shaft from sealing correctly, given that all the retainers (etc.) are pressed on, and rely on that press fit in order to seal.

      Hope that helps!

      • European Auto Solutions P.R.
        European Auto Solutions P.R. July 28, 2023

        Thank you again for replying and keeping in touch. Here is a link of the cut in the axle. Please let me know what you think, I'm trying to get this out of the shop but in the right way. Thank you for the work you do and the knowledge you share with us. I'll wait for your final verdict in this crucial case.

        • turbodb
          turbodb July 28, 2023

          That link (which I have deleted) was to a local file on your computer, and not in the correct format for a photo. Feel free to upload the photo to a photo hosting site like imgur.com, and then post a link to it here and I'm happy to take a look.

          • European Auto Solutions P.R.
            European Auto Solutions P.R. July 28, 2023

            Thanks for the tip! Here is the link to the image of the axle I mentioned previously.
            https://imgur.com/a/Fei6PiA

            • turbodb
              turbodb July 28, 2023

              Thanks for including the image. 👍

              Yes, I'd definitely replace that axle, unfortunately.

    • steve Sanderson
      steve Sanderson November 6, 2023

      if that grinder got into the axle. yes it will leak axle lube again, and of course the axle lube soaks into the brake linings. I use a Dremel tool with a reinforced disc to cut the retainer ring. being vey careful with the depth. then chisel to crack the ring comes off easily. not a job for rookies or the diy guys. Toyota Master Diagnostic Tech japanwest @ yahoo.com

  7. Skidoo
    Skidoo January 19, 2024

    At first was trying to figure out what was to the right of your 20ton. Then discovering it was a Branick Strut Spring Compressor. Wow that is the gold standard. Very smart, not overkill as some would say. Having friends try to make do with Harbor Freight or similar compressors, and seeing them bend and groan, they stopped and headed to the nearest shop.

    • turbodb
      turbodb January 20, 2024

      Yes, the Branick was a nice splurge. I got after picking up the ADS shocks, since I knew I'd eventually want to rebuild them. Turns out that having it meant that I could do my own assembly of the OME coilovers that I purchased for our (short-lived) 3rd gen 4Runner, and I've since used it for shock rebuilds on my - and several of my buddies - trucks. Love that thing, and it makes a job that is seriously terrifying, a walk in the park. I love it.

  8. Jeni B
    Jeni B March 18, 2024

    Updated Part Numbers for 02 Tacoma 3.4L v6 2WD

    Brake shoe kit 04495-35151
    Inner Seals for Axle Housing 90310-50001

    Thanks for your tutorials!!

    • turbodb
      turbodb March 18, 2024

      Thanks Jeni. Just did a quick lookup, and those part numbers that you listed are the "old" part numbers, replaced by the ones I've got in the writeup.

      Brake shoe kit 04495-35151 was replaced by/with 04495-35230
      Inner Seals for Axle Housing 90310-50001 was replace by/with 90310-50006

      At least, I'm mostly sure I'm reading the internet correctly. Let me know where you see otherwise. 👍

      • Jeni B
        Jeni B March 18, 2024

        EDiT: to my post about the part numbers. I just talked to the parts dept at the dealership and he verified that 90310-50001 has been updated to -50006.

Leave a Reply

Your email address will not be published. Required fields are marked *
