Step by Step Tundra Brake Upgrade on a Tacoma (or 4Runner)

Step by Step Tundra Brake Upgrade on a Tacoma (or 4Runner)

Filed under Brakes. See all how-to guides.

Adding Tundra brakes to your 1st gen Tacoma (1996-2004) or 3rd gen 4Runner (1996-2002) is one of the easiest upgrades you can make. The larger calipers, pads, and rotors give your truck significantly more stopping power and at the same time decrease brake fade since the larger rotors are able to better dissipate heat.

The entire process takes only a couple hours, and requires little in the way of special tools. After doing this work on both my 1st gen Tacoma and 3rd gen 4Runner, as well as helping several friends with their brake upgrades, I figured that it was worthwhile to put together a step-by-step guide for the process in order to share some of the tips and tricks I've learned over the years.

If you're interested in reading stories of actual experiences and background information, here are a few worth reading:

Done with that? Let's get started.

Whatever the reason for replacement, it's not a hard job, requires no special tools, and is one you can save a lot of money by doing yourself. So let's get started.

Parts

Using 13WL Brake Calipers (Recommended)

Note: alternatively, if you want to buy a kit that contains rotors, calipers, and pads, you can purchase one from either Callahan or Power Stop (red) (silver). The components won't be quite as high quality as the OEM components listed above, but many people go this route to save a bit of money. If you do go this route, you still need the Tacoma-to-Tundra Hard Brake Line Upgrade Kit (or for a 4Runner, the 4Runner Front Stainless Steel Brake Lines), some DOT4 brake fluid, and 3M brake cleaner.

Using 13WE Brake Calipers (Option)


In 99% of cases, the parts listed above - utilizing the13WL caliper - are the recommended parts to use. However, with a very limited set of wheels (most notably, the 3rd gen 4Runner Double 3-spoke), one may want to install the slightly smaller S13WE caliper casting. For the parts needed when going that route, click here to show the 13WE Brake Calipers parts below.

Tools

You don't need much from a tools perspective either. Gather these up and you'll be good to go.

  • A few different size sockets/wrenches (though expensive this is a good kit that has nearly everything you'll ever need)
    • 12mm - to remove the brake line from the bracket on the spindle.
    • 14mm - to remove the brake line bracket from the spindle.
    • 17mm - for the caliper itself.
    • 21mm - lug nuts.
  • A 10mm flare nut wrench for the caliper-brake line fitting.
  • A 8mm box-end wrench for bleeding the brake calipers.
  • Impact wrench (or large breaker bar) - for removing your lug nuts.
  • An angle grinder - for cutting the dust shield. Note: you can also use a dremel, hacksaw, or other metal-cutting tool.
  • Torque wrench - to re-torque the caliper bolts and lug nuts.
  • Some rubber vacuum caps - to keep brake fluid from leaking everywhere while swapping the calipers.

Doing the Job

With all the parts and tools gathered, it's time to get to work. Perhaps obviously, the job is mostly a bunch of removal of parts, and then a bunch of installation of those same parts - or rather, installation of replacement parts. This list of steps is just that - a list of steps (which makes it a great resource to print off and reference when you're doing the job).

Removing the wheels

  1. Jack up the front of the truck using a floor jack and place a jack stand under each side of frame, just behind the front wheel well.
  2. Remove the lug nuts securing one of the front wheels. Note: While it's not required for the job, I really do love this Milwaukee impact wrench. I debated for several months whether or not I should get it, and it's one of my favorite tool purchases to date. I smile every time I use it.

Disconnecting the brake lines (Tacoma)

  1. Using a 10mm flare nut wrench, loosen but do not disconnect, the connection between the hard and soft brake lines at the frame.
  2. With the connection loosened, use a screwdriver, pliers, or any tool necessary to remove the clip that secures the soft line to the frame.

  3. With the clip removed, complete removal of the soft line from the hard line.
  4. Push the flare nut half an inch up the hard line and use a rubber vacuum cap to cap the end of the hard line to stop any drips. Note: this is important so you do not drain all of your brake fluid as you complete the job.

  5. Locate the bracket that holds the soft brake line (and ABS line if equipped) to the spindle.
  6. If you have ABS, remove it from the spindle bracket by pushing the clip out of the bracket.
  7. Use a 12mm or 14mm socket (year specific) to remove the bolt securing the bracket to the spindle. Note: there is no need to remove the bolt securing the soft brake line to the bracket, you will be replacing the bracket with one from the Tacoma-to-Tundra Hard Brake Line Upgrade Kit.

Disconnecting the brake lines (4Runner)

  1. Locate the bracket that holds the brake line to the spindle.
  2. Using a 12mm socket, remove the single bolt so that the line is free to move.
  3. Using a 10mm flare nut wrench, remove the hard line from the brake caliper. Note: When you do this, brake fluid will want to start leaking out, so use a small rubber vacuum cap to seal off the end of the line (Hint: push the fitting up the line so you can get a tight fit on the flared end of the line itself).

Removing the Caliper and Rotor

  1. Locate the two 17mm bolts that secure the caliper to the hub and remove them.

  2. Set the caliper aside. Note: If you need a core for your new 13WL calipers, you can use these.
  3. Slide the rotor off of the lug studs and set it aside. Note: The rotors are essentially paperweights; keep them or discard them.

Trim the Dust Shield to fit the 13WL Caliper

  1. Using the side-appropriate Tundra 13WL caliper, hold it approximately in place and note where it overlaps the dust shield that is still attached to the hub assembly.
  2. With a sharpie, mark a cut line. Note: Check both the top and bottom corners of the caliper - you may need to trim the dust shield only for the top, or both the top and bottom.

  3. Using an angle grinder, dremel, hack saw, or other cutting tool, remove the material necessary for the caliper to clear. Note: Don't worry too much about this cut, get it close but it doesn't need to be perfect.

Fit the Rotors and Check for Clearance

  1. Install the new rotor over the wheel studs with two lug nuts that are just tight enough to secure it to the hub assembly. Note: usually this is finger tight.

  2. Rotate the caliper several times to check for clearance of the dust shield by listening for rubbing/grinding.
  3. Bend the dust shield as necessary to prevent any rubbing.
  4. If there is still rubbing/grinding after you're sure that you've bent the visible portions of the dust shield away from the rotors, remove the rotor and check the portion of the dust shield that fits "inside" the center of the rotor. That seems to rub sometimes / for some people - but not for others. For me, it's rubbed one of six times. If it is rubbing, use an angle grinder, dremel, or file to remove/file off a bit of material from the entire radius.

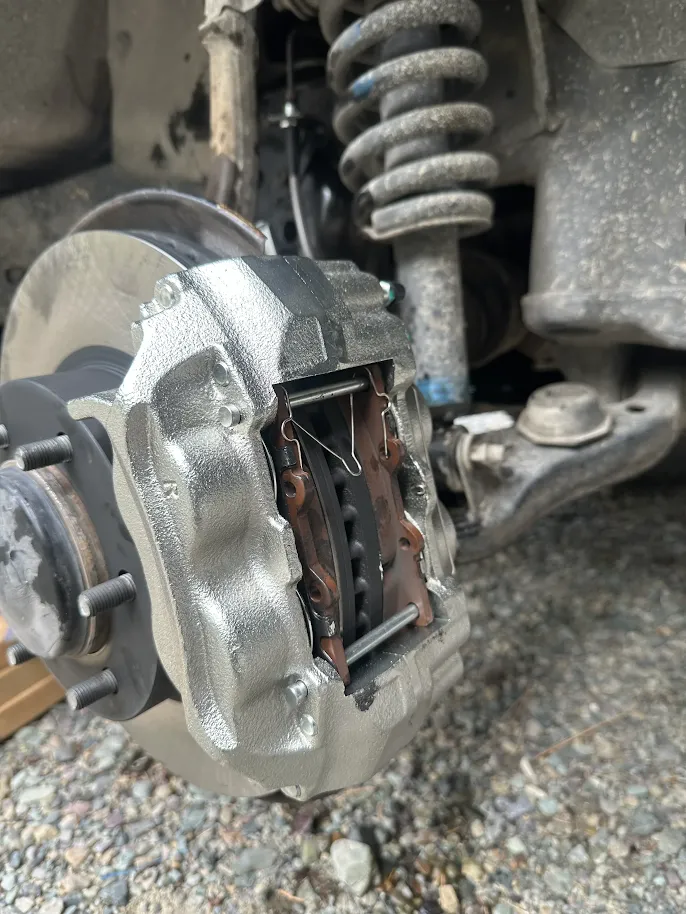

Install the Tundra Calipers

  1. If it isn't already, install the new rotor over the wheel studs with two lug nuts that are just tight enough to secure it to the hub assembly. Note: usually this is finger tight.
  2. Hold the caliper in place and secure it with the two 17mm bolts. Torque the bolts to 90 ft-lbs.
    Note1: In rare cases, the Tacoma caliper bolts may be too long to fit into the Tundra calipers. If this is the case, pick up four (4) Tundra caliper bolts (90080-10298) which are slightly shorter.Note2: Make sure to install the caliper so the bleeder valve is on the top half of the caliper for proper bleeding.

Install the Brake Pads and Shims

  1. Using the supplied grease, spread a thin layer on both sides of the slotted shim, and on the outside of the solid shim.

  2. Assemble the brake pads and shims by creating a sandwich of brake bad, slotted shim, solid shim.

  3. Slide the pad/shim assembly into the caliper, next to the rotor.
  4. Repeat for the second pad/shim assembly.
  5. Install the bottom pin that secures the pads to the caliper by sliding it through holes that align on the two components. Secure it with a small retention clip.
  6. Install the top pin, while also installing the small spring that pushes the pads away from the rotor. Secure it with a small retention clip.

    Note 1: The easiest way to do this is to install the two ends of the spring into the pads, making sure the "ears" of the spring are on the narrow edge of the pads. Then, slide the top pin through the caliper, pads, and spring at the same time.

    Note 2: Some people report not getting the wire brake pad anti-rattle spring with the calipers that they purchase. If this is the case for you, you can pick these up separately from one of the following locations:

    1. Amazon: Disc Brake Anti-Rattle Clip H4749
    2. Toyota Dealer: Disc Brake Anti-Rattle Clip (47748-0C010)
    3. Local parts store: (O'Reilly - BrakeBest Anti-Rattle Clips - H4749)

Install the Brake Lines (Tacoma)

  1. Use the 12mm or 14mm socket (year specific) that was previously removed to attach the side-specific bracket from the Tacoma-to-Tundra Hard Brake Line Upgrade Kit, securing the bracket to the spindle. Torque to 20 ft-lbs. Note that the bracket is oriented so that the hole for the ABS clip is on the bottom, and hole to attach to the spindle is on the top, with the hole for the hard brake line toward the front of the spindle.

  2. Using a 10mm flare nut wrench, install the side-specific hard line from the Tacoma-to-Tundra Hard Brake Line Upgrade Kit into the Tundra caliper so that the other end aligns with the hole in the bracket. Tighten securely, but do not over tighten the flare nut.

  3. Insert the stainless steel brake line between the spindle bracket and frame bracket, using a brake line clip to secure it to each bracket.
    1. Note 1: Reuse the brake line clip earlier removed from the frame bracket, and a new clip supplied with the Tacoma-to-Tundra Hard Brake Line Upgrade Kit.
    2. Note 2: Route the stainless steel line behind the spring of the coilover, and in front of the spindle to the bracket, as shown.
    3. Note 3: Do not secure the stainless steel brake line between the brackets (with zip ties, etc.) as the line needs to flex and move as the suspension cycles.

  4. Finger tighten the hard line to the soft line at the spindle bracket. Once finger tight, use a 10mm flare nut wrench to tighten securely, but do not over tighten the flare nut.

  5. Remove the rubber vacuum cap from the hard brake line at the frame and finger tighten the flare nut into the stainless steel soft line attached to the frame bracket. Note: This may be difficult as slippery brake fluid will be dripping at this point. Work as quickly as possible.
  6. Using a 10mm flare nut wrench, tighten the flare nut securely, but do not over tighten the flare nut.

Install the Brake Lines (4Runner)

  1. Use the 12mm or 14mm socket (year specific) that was previously removed to re-attach the bracket to the spindle. Torque to 20 ft-lbs.
  2. Using a 10mm flare nut wrench, install the hard line into the Tundra caliper. Tighten securely, but do not over tighten the flare nut.

Re-install the Wheels

  1. Re-install the wheels and secure with lug nuts.
  2. Remove jack stands.
  3. Torque lug nuts to 89 ft-lbs. Drive a bit. Re-torque lug nuts.

Bleeding the Brake Lines

Note 1: always bleed from furthest-to-closest bleeder to the master cylinder. In Tacoma's and 4Runner's, that is passenger rear, driver rear, passenger front, driver front. In this situation, since we've only messed with the front lines - and assuming you didn't drain the reservoir under the hood in the process - we will only do the passenger front and driver front, in that order.

Note 2: This can make a bit of a mess. Have a catch basin or shop rags positioned below the bleeder to catch brake fluid that comes out of the bleeder, or fit a clear plastic tube over the bleeder that funnels the brake fluid into a container, in order to keep things clean.

  1. Check the brake fluid level in the reservoir under the hood. If it is below the full line, add fluid to the full line.
  2. Have a second person sit in the driver seat and pump the brake pedal until it is firm - usually a few pumps.
  3. Place an 8mm box-end wrench over the bleeder valve and get the valve to "barely tight."
  4. Have the second person pump and hold the brakes in the following pattern - Pump, Pump, Pump, Pump-and-Hold. Note: it is helpful if they say this as they are doing it.
  5. While the brakes are being held, loosen the bleeder valve to slowly let out air and brake fluid for a short period of time, then re-tighten the bleeder valve. Say "again," to your helper so they know they can stop holding the brakes.
  6. Repeat steps 4 and 5 until only brake fluid comes out of the bleeder valve (no air).
  7. Check the brake fluid level in the reservoir under the hood. If it is below the full line, add fluid to the full line.

Repeat this process for the driver front (and/or any bleeders that still need bleeding).

You're done!



Bedding the Brakes

With new brakes installed, I recommend a process called bedding the brakes, a process by which you deposit a layer of pad material evenly across the braking surface of the rotor. This minimizes squealing, increases braking torque, and maximizes pad and rotor life.

This process is technically optional - the brakes will bed themselves over time even if you don't do this - it'll just take longer, and they won't work quite as well until they are bedded.

Advantages

  1. Gradually heat treats the rotor and eliminates any thermal shock in the rotor.
  2. Burn off volatiles and moisture from the resin that is near pad surface. This will eliminate “green fade.”
  3. Establishes a layer of transfer film about a few microns thick on the rotor surface. Shearing of the film during friction is an effective source of friction force. Otherwise, when using a freshly ground rotor without the transfer film, the main friction force would come from cutting, plowing, or scoring the asperities on the rotor surface. This leads to inconsistent braking effectiveness.
  4. Mate the two surfaces to a near perfect geometrical match, so that the contact area is high, and therefore the friction force is increased.
  5. The performance of a fresh rotor/fresh pad system would be inconsistent. This is due to ever-changing structures and properties of the two mating materials. Bed-in of pads and rotor will form a stable transfer film.
  6. If bedding in procedure is not applied, a stable transfer film may not be established for a long time. In other words, the rotor surface would have to be constantly regenerating a film that is not quite stable for a long time. This effect would reduce the performance and increase the wear.

Bed-In Procedure:

  1. Make a series of five gentle slow-downs from 60 to 45mph. Do it GENTLY to bring the brakes up to operating temperature. This prevents you from thermally shocking the rotors and pads in the next steps.
  2. Make a series of eight near-stops from 60 to about 10 mph. Do it HARD by pressing on the brakes firmly, just shy of locking the wheels or engaging ABS. At the end of each slowdown, immediately accelerate back to 60mph. DO NOT COME TO A COMPLETE STOP!

Note 1: With less aggressive street pads and/or stock brake calipers, you may need to do this fewer times. If your pedal gets soft or you feel the brakes going away, then you've done enough. Proceed to the next step.

Note 2: During this process, you must not come to a complete stop because you will transfer (imprint) pad material onto the hot rotors, which can lead to vibration, uneven braking, and could even ruin the rotors.

Note 3: Depending on the pads you are using, the brakes may begin to fade slightly after the 7th or 8th near-stop. This fade will stabilize, but not completely go away until the brakes have fully cooled. A bad smell from the brakes, and even some smoke, is normal.

  1. After the 8th near-stop, accelerate back up to speed and drive around for as long as possible without using the brakes. The brakes will need at least 10 minutes to cool down. Note: Obviously, it's OK to use the brakes to avoid an accident, but try to minimize their use until they have cooled.
  2. Repeat steps 1-3 for a second break-in cycle. This may not be entirely necessary in all cases, but is good insurance to ensure a good break-in. Additionally, if you've just installed a big brake kit, the pedal travel may not feel as firm as you expected. After the second cycle, the pedal will become noticeably firmer.

After the break-in cycle, there should be a blue tint and a light gray film on the rotor face. The blue tint tells you the rotor has reached break-in temperature and the gray film is pad material starting to transfer onto the rotor face. This is what you are looking for. The best braking occurs when there is an even layer of pad material deposited across the face of the rotors. This minimizes squealing, increases braking torque, and maximizes pad and rotor life.

Published in Q & A; experienced on 2019-08-19

62 Comments

  1. Brandon
    Brandon February 12, 2021

    Another excellent write-up. I plan to do this within a year and buy your Tacoma-to-Tundra Hard Brake Line Upgrade Kit.

    How much of an improvement have you noticed since the Tundra brake upgrade on the road and off road?

    Any difference when stepping on the brake pedal?

    Reply
    • turbodb
      turbodb February 12, 2021

      Thanks Brandon. The biggest benefit of the Tundra brakes (in my opinion) is the increased pad and rotor size. The larger size gives you more surface area for heat dissipation, which makes it much less likely that you will ever overheat the brakes (warping rotors, boiling brake fluid, etc.)

      As far as stepping on the brake pedal - I never had a problem stopping once with Tacoma brakes, it was the prolonged braking that I was after. So, I do notice a difference - there's a lot more braking going on, but that wasn't my reason for the upgrade (or the reason I recommend to others).

      Hope that helps!

      Reply
  2. Tyson
    Tyson March 20, 2021

    When going with the bigger calipers and rotors, I am assuming I will not be able to run the standard 16” wheels I have now and will have to get a bigger size?

    Reply
    • turbodb
      turbodb March 20, 2021

      Hey Tyson, this is a pretty common question and the answer is "it depends." I put together a page that lists wheels that are known to work with the Tundra Brake Upgrade. You can access that page here: Which Wheels/Rims Fit the Tundra Brake Upgrade (13WL 231mm rotors) on a Tacoma? (or 3rd gen 4Runner). At the top of the table is a search box if you know the brand/model of wheel, or you can just look at the pictures. The [source] field takes you to "proof" (someone else running that setup) for each wheel. Hope that helps!

      Reply
      • shafertl
        shafertl May 18, 2023

        Hi there. I am hoping to do this mod. I am running American Racing Baja 16" wheels. I see from your list of wheel compatibility for the 13WL calipers that I will need a spacer. I am hoping to not use spacers. Is there a similar list for wheel compatibility for the S13WE calipers? What/where is the difference in size between the two?

        Reply
        • turbodb
          turbodb May 21, 2023

          Hi (and sorry for the delayed response, I just got back from a trip to SE Oregon),

          There's no similar list for the 13WE calipers, but I've not seen a set of 16" wheels that required spacers for those. I think they are a good alternative. That said, I'd give the following a try:

          1. head to your local parts store (Napa, etc.) and pick up a single 13WE caliper.
          2. Remove the two bolts that secure your current (Tacoma) caliper to the mount but don't remove the brake line from it. Then, move it out of the way temporarily.
          3. Bolt up the 13WE caliper (on your current rotor, which won't fit correctly, but that doesn't matter for the test) and test the wheel to see if it fits.

          I'm 99% sure it'll fit, but that will give you a 100% for sure answer.

          And let me know how it goes! Would love to include the info in the list! ?

          Reply
    • Mike C.
      Mike C. September 15, 2023

      I am running late model Taco 16” OEM wheels and having no problems with this Tundra brake upgrade.

      Reply
      • turbodb
        turbodb September 15, 2023

        Great to hear Mike. Can you reply to this email with a photo of the wheels you're running so I can add them to the list? Thanks!

        Reply
  3. Bill
    Bill May 3, 2021

    I just watched a video where a guy did the same swap out but also used this,
    -Toyota 1.25" Thick Wheel Spacers from spidertrax.com.
    Can you tell me why you didn't need to use a spacer?
    I'm just wanting to get all the parts needed to get the job done in one day so I can go back to work the following day without worrying my truck will be down.
    Thanks

    Reply
    • turbodb
      turbodb May 3, 2021

      Hi Bill, whether you will need a spacer or not is based on the wheel that you choose. The wheels I chose are able to fit the calipers inside the wheel, and so don't need spacers. What wheels are you running (or planning to run?) This page has a searchable list of the wheels that are known to work with the Tundra Brake Upgrade, and also lists whether spacers are needed to make the wheel fit the calipers: Which Wheels/Rims Fit the Tundra Brake Upgrade (13WL 231mm rotors) on a Tacoma? (or 3rd gen 4Runner) Hope that helps, but please do post what wheels you're planning to use!

      Reply
      • William Armstrong
        William Armstrong May 3, 2021

        Just the stock 16" factory wheels
        No real plans to change them, if so I would go for roughly the same.

        Reply
        • turbodb
          turbodb May 3, 2021

          If they are the stock 16" snowflake wheels, then they will fit just fine with no spacers. You can see those in the table as "Tacoma 1G Snowflake"

          Reply
          • William Armstrong
            William Armstrong May 3, 2021

            Thanks.

            Reply
    • Jason Henry
      Jason Henry June 21, 2021

      I just did the upgrade and the new brakes are great, your brakeline kit worked perfect. Each of the Callahan calipers came with 2 copper color washers, I can't figure out where they go, do you know?

      Reply
      • Collin t
        Collin t September 7, 2022

        Banjo bolt crush washers?

        Reply
  4. Jim Goodrum
    Jim Goodrum June 19, 2021

    Hey
    Great write up. Is there an option for Gen 2 Tacomas? I have a 2012 XSP-X
    Thanks

    Reply
    • turbodb
      turbodb June 19, 2021

      Hey Jim, I'm not sure if there's a 2nd (and 3rd) gen upgrade to bigger brakes, though I've heard that 4th/5th gen 4Runner brakes might be an option. My suspicion is that they have larger brakes already.

      Reply
      • Jim
        Jim June 19, 2021

        Thanks for your time

        Reply
        • turbodb
          turbodb June 19, 2021

          Sure thing. The best way to find out for sure is to ask over on TacomaWorld. If there is a big brake upgrade for 2nd gens, someone will have done it. In fact, a quick search turned this up for me: Big brake kits.

          Reply
  5. Jason Henry
    Jason Henry June 21, 2021

    I just did the upgrade and the new brakes are great, your brakeline kit worked perfect. Each of the Callahan calipers came with 2 copper color washers, I can't figure out where they go, do you know?

    Reply
  6. Josh
    Josh July 15, 2021

    Just did the upgrade everything fit perfect and the brake line kit worked awesome. I am getting the clunk from the floating pads, is that something you experienced or were your pads tight?

    Reply
    • turbodb
      turbodb July 15, 2021

      Glad to hear the upgrade went well Josh! I didn't get any clunk (that I noticed) from the pads. Are you getting it when you let off the brakes, or something else? Could it be that the pad springs aren't fully seated, pushing the pads back out? Did you grease the pins and shims?

      Reply
  7. Jonathan
    Jonathan December 27, 2021

    Is there any reason to think that the Tundra dust shields won’t work?

    I am replacing my hubs, bearings, spindles, CV’s, etc. and was going to upgrade brakes at the same time.

    Figured I would put Tundra shields on while everything is disassembled.

    Reply
    • turbodb
      turbodb December 27, 2021

      I would think that Tundra dust shields would be just fine. Not that very much modification is needed for the Tacoma ones - so if you weren't replacing everything else, I'd say it's not worth the trouble - but I don't see any downside to go the Tundra route. Come back and verify that they work (or don't) if you don't mind!

      Reply
  8. leon
    leon February 6, 2022

    hello, i just did the swap yesterday along with replacing my abs sensors on my 994r. now i notice that when i am coming to a complete stop, my breaks will release and reapply (abs?) when i am under 10mph, but before the complete stop. totally clueless as to why this is happening. any ideas?

    Reply
    • turbodb
      turbodb February 6, 2022

      Hey Leon, It's hard to know exactly what's going on. If it's the ABS, it should be a pulsating that you can feel in the pedal (rather than what I would call a "release and reapply," which sounds to me more like letting off and then pressing the brake again). You should also hear the ABS system "pulsing" if it's ABS, and the pulsing should continue for a second or so if you let off the brake pedal completely. Is that what you're feeling, or something else?

      Reply
  9. Eric James
    Eric James March 29, 2022

    Hi I was looking at ordering the same Napa eclipse calipers that you got when I looked at them it say one is a 4 piston fixed caliper and the other is a 4 piston floating caliper is that right or should the both be the same

    Reply
    • turbodb
      turbodb March 29, 2022

      Hey Eric, The Napa descriptions are just wrong/inconsistent on their page. Those calipers are both the same style (fixed) and are the correct ones (13WLs) for this upgrade!

      Reply
  10. Vernon Storey
    Vernon Storey April 21, 2022

    I have a 97 Tacoma and want to upgrade from rear drums to disc. Does this upgrade do that or is there another upgrade info available? Thanks

    Reply
    • turbodb
      turbodb April 22, 2022

      Hi Vernon, This upgrade doesn't change the rear brakes on your Tacoma at all (as you can probably see by reading through it, it's completely focused on the front). There are kits out there that will convert the drum brakes to disc, but in my opinion (and experience) they are not worth (on 1st gen Tacoma's or 3rd gen 4Runners) it for several reasons:

      1. Loss of emergency/parking brake. Installing disc brakes on a Tacoma has the side effect of deleting/removing your emergency brake. That seems like a pretty useful thing - at least for me, with a M/T and my constant in/out of the truck for photos on the trail - that I'd hate to lose.
      2. Little-to-no increased braking power. Because of the way our trucks are designed, the rear brakes - when adjusted perfectly - max out at 30% of the braking power for the vehicle. This has to do with the weight distribution (there's not much weight in the back) as well as the load sensing brake proportioning valve (LSPV) under the bed of the truck. This is a great reason to upgrade the front brakes to larger rotors - to dissipate the heat better where 70%+ of the braking is happening - but makes it somewhat pointless to upgrade the rears.
      3. The existing drums have plenty of mass to skid the rear tires without overheating. This builds on #2 a bit, but in general, brakes should be upgraded when the existing parts aren't able to do their job without failing. In the case of braking, if the vehicle can lock up the tires, you generally can't get any "better" than that, as long as the heat buildup doesn't cause them to warp. Even stock, both front and rear on a Tacoma can lock up, so that's great, but on the front, there's a reason to upgrade - the front rotors have a tendency to warp in periods of extended braking (due to heat buildup). The rears don't have this issue - due to their mass, and the limit of 30% braking - so no need to change them.

      Taking all those things together, upgrading the rear brakes to discs is really just a waste of money and a loss in performance/functionality in most cases. You'd actually be much better off making sure that your rear drums are properly adjusted so that you're getting as much braking power out of them as possible. I've outlined the adjustment procedure in this guide: Step by Step Tacoma Rear Drum Brake Shoe Replacement (also 4Runner).

      Hope that helps!

      Reply
  11. BLP
    BLP July 9, 2022

    Appreciate the guides you have up here, all very thoroughly detailed.

    When bleeding the brakes, do you not have to also bleed the load sensing proportioning valve as well?

    Reply
    • turbodb
      turbodb July 9, 2022

      Thanks, glad you’re finding the guides useful! When you are bleeding the brakes, you are technically supposed to bleed the BPV, however unless you’ve done something to the rears, I’ve never had the need. If you do bleed the BPV, it is bled between the rears and the fronts.

      Reply
  12. AFRASYAB KHAN
    AFRASYAB KHAN November 9, 2022

    This writeup was completely helpful. I just did this upgrade on my 3rd Gen Hilux Surf. I have done the proper bleeding at all wheels.
    Only issue I am having with this upgrade is my brake pedal now goes very down as it was not the case with old callipers.
    Pedal will get hard but if u keep holding it will just goes further down.
    Am I missing something.
    Any suggestion will be helpful.
    Cheers

    Reply
    • turbodb
      turbodb November 9, 2022

      With the Tundra upgrade, your pedal will go down further than it did prior to the upgrade. This is because the 13WE and 13WL calipers use a larger volume of brake fluid, so more needs to be pushed into the system by the pedal. However, if your pedal continues to move once it has firmed up, it means that you have something "compressible" (like air or water) in the system. Assuming of course that you don't have a leak, which it sounds like you don't, since you haven't mentioned losing any brake fluid. Here are the most common things that I would start with in order to figure out what's going on:

      1. Re-bleed the brakes to make sure you've got all the air out. Toyota says to bleed from furthest to closest, so Rear Proportioning Valve, then RR, LR, RF, LF is the correct order. Do it until there is no air coming out, and then bleed at least 3-5 more cycles.
      2. If your brake fluid is old, it could need replacing/flushing. Brake fluid should be a very light honey color - almost clear. If it's a darker green or grey or blue - that discoloring means that it's saturated with water (which it picks up from the atmosphere). Water compresses (and boils) much more easily than brake fluid, causing that spongy pedal feel. Get all that old brake fluid out - which means bleeding a lot through each corner - and things will be a lot better.
      3. The brake lines between the frame and spindle are the (usually old/original) rubber lines. With a larger volume of fluid in the Tundra calipers, it's important to reduce the amount of expansion of the lines when you press on the brake pedal. Using braided stainless steel lines with the TBU is a really good idea. These are great lines: (T4R: https://adventuretaco.com/product/4runner-stainless-steel-brake-lines-for-tundra-brake-upgrade/). Given that you're asking the question here, I'll assume you already did this! ?
      4. Too much brake fluid leaked out when doing the upgrade. This is usually noticeable when the brake fluid reservoir is empty at any point in the process of upgrading the brakes, but the problem isn't the empty reservoir, it's that now there is air in the MC and - if you have it - the ABS control module. Bleeding both of these components is *very* difficult for the typical DIYer, so the only real solution if this happens is to take it to Toyota, where they have special actuators that cycle these components during bleeding, to get the air out.
      5. Make sure you've properly bedded the brakes. You'd be surprised how much this helps them grab. Here's how to do it: https://adventuretaco.com/guide/step-by-step-tundra-brake-upgrade-on-a-tacoma-or-4runner/#bedding
      6. Make sure the rear brake shoes are properly adjusted. These require brake fluid from the system as well, so if the cylinders there need to push further than "the right amount," they are sucking up brake fluid that should be going to the calipers in the front. The rear shoes are *suppossed* to adjust automatically with the parking brake, but a lot of times they get gunked up and don't adjust as they should. You can learn how to clean them (so the parking brake adjustment will work), and adjust them manually, here (note: you don't have to replace them, but the write-up covers that as well): https://adventuretaco.com/guide/step-by-step-tacoma-rear-drum-brake-shoe-replacement-also-4runner/

      Hope that helps, and please do reply when you figure out the issue so others can benefit from your investigation! ?

      Reply
  13. Helper
    Helper November 11, 2022

    For anyone who purchases calipers and doesn't get the little Clips that are spread the pads apart, there are a couple options:

    1. The calipers should come with them, so you should be able to reach out to the place of purchase and they should either give you some springs or replace the calipers/box with a box that isn't missing the springs.
    2. If it's quicker, you can pick up springs from Toyota for ~$5 each. They are Toyota OEM Anti-Rattle Spring for 13WE, 13WL (47748-35010). Even though it looks like two can be installed on each caliper, you only need *one* per caliper/side.

    Reply
  14. Brian
    Brian February 13, 2023

    Fits in 17” Icon Compression wheels!

    Reply
  15. Mike Pruitt
    Mike Pruitt April 16, 2023

    Getting ready to do the upgrade on my 3rd generation. My question is do I reuse the caliper mounting brackets for the larger calipers ?

    Reply
    • turbodb
      turbodb April 16, 2023

      Hey Mike, I'm not sure what you mean by caliper "mounting bracket." In my experience, the calipers mount directly to the hub/spindle, and both the OEM calipers and Tundra (13WL or 13WE) calipers mount to the same holes. If you have a photo of what you're wondering about, I'm happy to give you more/better info.

      Reply
  16. michael pruitt
    michael pruitt April 19, 2023

    There’s a bracket that holds the calipers to the wheel assembly, it’s separate from the caliper itself. Not sure how else to explain it . I’ll try adding a picture.
    That didn’t work, if you have a second, pull up the caliper bracket and you’ll see what I mean. I just need to know if the 02 bracket will work with the 04-05 tundra caliper

    Reply
    • turbodb
      turbodb April 23, 2023

      Hey Michael, sorry for the slow reply, I've been out exploring in Utah the last several days. If you can just reply to this email with a photo, that would be great.

      As I think I mentioned, I've never seen a 3rd gen 4Runner for 1st gen Tacoma that had a separate bracket for the caliper, so I while I can picture what you're talking about, I have never seen it on a truck.

      Reply
  17. Mike Pruitt
    Mike Pruitt April 21, 2023

    Finished the upgrade today, went with the Napa parts that were listed . Much easier than I thought, the information in the post was spot on. Brake pedal doesn’t seem to be as stiff as before, but doesn’t effect braking. Hoping this will remedy the issues I’d been having

    Reply
    • turbodb
      turbodb April 23, 2023

      Glad the upgrade was successful (and reasonably easy) for ya! You do have to move a bit more fluid around with the pedal, so having it be a little different than it was before is totally fine/normal. The key - as you've noted - is that you can still brake quite well (and now, for prolonged periods of time with less concern about rotor warpage).

      Reply
  18. Thang nguyen
    Thang nguyen September 13, 2023

    Just bought the set for 04 tacoma today , can I reuse the old brake line, the hose pressure botls can fit with new caliper brake tundra

    Reply
    • turbodb
      turbodb September 13, 2023

      Hi Thang, Your kit is already on the way (check your email for the tracking number). While you technically can reuse the old brake lines, there are a couple good reasons not to. You can read a post about it here, and a summary of the reasons below:

      1. The 13WL/13WE calipers were designed for a hard line connection. While the hard line uses the same thread size/pitch as the Tacoma banjo bolt, there are a lot of nuances as to whether the bolt will fit and seal, based on how the specific calipers you get are remanufactured.
      2. If you're thinking about reusing your original rubber lines, you may notice a softer pedal than if you move to a stainless steel line. That's due to the fact that the rubber lines expand more when you pressurize them, something you want to avoid when you have to move larger volumes of fluid to fill the larger calipers.
      3. If you already have stainless steel lines that connect to your calipers, the hard lines in the kit go a step further to reducing the amount of fluid you need to move; again, this helps with pedal feel - the most common complaint that folks have after performing this upgrade.

      Hope that helps!

      Reply
  19. Thierry Castro
    Thierry Castro October 22, 2023

    This is a spectacular post! I almost feel like I could do it myself--but I don't have (some of) the tools nor the workspace.

    Are there shops (West Coast? SF Bay Area? BC?) that are experienced doing the upgrade using your kit and parts list?

    Would love to do this for my 1999 Tacoma (4wd off-road, ext. cab)!

    (I have not been able to identify my wheels off your spreadsheet: they are double 3-spoke like the ones identified for a 4-runner--one of the few that requires a spacer!--I suppose that could be correct also on my Tacoma?)

    Reply
    • turbodb
      turbodb October 23, 2023

      Hey Thierry, I don't know about specific shops, but I'm sure that if you went to a local mechanic with a printout and parts in hand, they'd be able to give you a good quote. That said, the work is so straight forward that I'd urge you to consider purchasing a few tools (if you only need a few) in order to do it yourself. It's easily doable in a driveway or even the parking lot of your local Napa/O'Reilly/etc. in an hour or two. Heck, I did it parked on the side of the road in the middle of a trip to Montana, once! The cost of the tools - even if you had to purchse them all - will likely be less than the labor a shop will charge, and when it's all done, you get to keep the tools! 👍

      As for the wheels - if the ones you have are the stock Tacoma double 3-spoke (that look like the 4Runner double 3-spoke) then they are 15" rims (those are what I originally had on my truck as well; here's a picture) and they won't fit either of the Tundra caliper options, which require 16" rims or larger. You can tell if you have the 15" variety by looking at your tire size. That'll tell you the diameter right on the sidewall. Good luck!

      Reply
      • Thierry Castro
        Thierry Castro October 24, 2023

        Thank you for your response!

        Oh darn! They are indeed 15" wheels.

        Whoops, this just got way more (and too) expensive: plus new wheels and tires. Darn.

        I was SO looking forward to this upgrade! Would you recommend another, second best option? (Perhaps there are better rotors or pads for the existing Tacoma calipers?)

        And thank you for the encouragement to DIY...

        Cheers!

        Reply
        • turbodb
          turbodb October 24, 2023

          While getting new wheels (and tires) can seem like an expensive change, it doesn't have to be *that* expensive, depending on the route you're able to take.

          I personally am a fan of Toyota wheels, and it seems that you can always find a full set (with tires) on Craigslist for something in the $200 range (and probably less if you're not in an expensive area like Seattle, as I am). Now, those might not be the tires you want, but sometimes you get lucky there as well.

          If they aren't the tires you want, an option is to wait for your current set of tires to wear out. Then, since you have to buy tires anyway, you can pick up tires that would fit the new Craigslist wheels, and put everything on together. It's more money at one time, but it's money you'd have to spend anyway.

          Anyway, I say all of that because there isn't really a good option for the front brakes on a Tacoma besides the Tundra upgrade. That's because the main benefit is the larger rotors, which can absorb more heat, thus preventing warping. As such, stickier pads or slotted/drilled "normal" size rotors just aren't going to give you the same benefits.

          Anyway, hope that helps!

          Reply
          • Thierry Castro
            Thierry Castro October 24, 2023

            Thank you, it totally does. I was thinking about the same thing: take some time to find a set of wheels ( is 17" better than 16"?) and when it's time to replace the current tires, do the brake swap then. Unfortunately, that may take a while--I could really use great brakes, I'm carrying a lot of weight on the Tacoma.

            I like the Toyota wheels too. I just need to make sure they are at least 16", correct? Not sure if they come bigger (like 17").

            Reply
            • turbodb
              turbodb October 24, 2023

              If you can get 17's, you'll definitely have more tire choices. The tradeoff is that many 17" Toyota wheels have a tad too much backspacing (on the order of 5" - 5.5") and so require a spacer on our 1st gens to keep them off the suspension.

              Not sure if you've seen it, but I maintain a list of wheels that are known to fit (along with links to the person who is running them). It mostly covers 16" wheels, since there are very few 17s that won't fit (with the right backspacing, lug pattern, etc.) I really like the "Sequoia Double 5-spoke" and the "TRD Pro" that are 17x7" though, and both of those would give you the slightly larger diameter.

              Reply
  20. Thierry Castro
    Thierry Castro October 24, 2023

    Very cool. Will start looking on Craigslist and Kijiji for a set of wheels, see what happens...

    Yes, I did see the compatible wheel spreadsheet. Will need to look at that more closely to narrow the choices...

    If what I found is correct, a 1st Gen 1999 4WD has a 6 x 139.7 bolt pattern, and that's what I need to look for also.

    Thank you again for all the info and this incredible resource!

    Reply
  21. Noah
    Noah December 5, 2023

    So when purchasing your Tacoma to Tundra brake line set up, is there anything else from your site thats needed? I've got an '04 1st gen with a 3.5" OME lift in the front. (1/2" spacer and 3" heavyduty coilover). The rear already has an extended brake line. So just the standard line conversion right? I don't need an extended travel one.

    Reply
    • turbodb
      turbodb December 5, 2023

      Hey Noah, thanks for reaching out. With your truck, all you need from my site is the Tacoma-to-Tundra Hard Brake Line Upgrade Kit, you do not need the Long Travel option. And no need to get a rear line either, if you've already got an extended line back there.

      Reply
      • Noah
        Noah December 5, 2023

        Perfect! Been looking at this for years and after smoking yet another set of stock front brakes... its time!
        Thanks for your help!

        Reply
  22. Bo
    Bo March 29, 2024

    Great write up and really appreciate all the links to the right parts. That is half the battle right there.

    I just did the upgrade and like several here did not receive the springs. However, the one thing I was wondering if is absolutely necessary is the shim kit? I bought it but cannot seem to get the pads installed with the sandwiched shims, per the provided picture. I tried to us a C-clamp to compress the cylinders more with no luck. With the calipers being new, I imagine there should not be much if any more room for the cylinders to retract. I may have just been a little too nervous on destroying the new calipers and could have compressed more. Figured I'd play it safe and see if I could get advice here first.

    Reply
    • turbodb
      turbodb March 29, 2024

      Thanks Bo, glad the write-up has been useful. As far as the shims go - they are largely to reduce friction (and thereby reduce noise). As such, it won't affect braking performance to run without them, but you may notice that you have squeaky brakes, or that you get some "chatter" between the brake caliper/pad/rotor. It should be a pretty snug fit with the pads and shims when everything is new, as well.

      I'd try a couple things:

      • It's much easier to press the pistons of the caliper back into the caliper if the brake lines are not yet connected. Not sure if that's how you were trying to do it, but you shouldn't need a c-clamp for the operation, your fingers should be enough. (too much force with the c-clamp might actually tweak the pistons)
      • If you can't get the pistons separated enough now, run the pads for a month or two without the shims, and then come back - at your next oil change or tire rotation - and insert the shims. The wear on the pads will hopefully be enough for you to slip those shims in.
      Reply
  23. Bo
    Bo March 30, 2024

    turbodb,

    Appreciate your quick response. Yeah, the calipers were still disconnected when I was trying to compress the cylinders. I suspected that the c-clamp might be too much at this new/unused state so thank you for confirming my suspicion.

    I was actually thinking the same action; running the pads for a bit and then insert the shims after some wear. Great minds think alike. Just needed a sanity check on it though.

    V/r,
    Bo

    Reply
  24. Ed
    Ed April 15, 2024

    Great EASY upgrade! I've installed QUALITY rotors several times due to warping. My hope is that this is the fix. Won't know for a while, or perhaps I'll just forget it was ever an issue. Braking definitely feels MUCH smoother and more controlled.

    One tip... Not being a mechanic, I tried to deal with removal of the brake line clip and nut from the wheel well. SO MUCH EASIER when I figured out I could reach over fender into the engine bay to access those. It may be noted in the instructions... if so, I missed it.

    I did "bed" the brakes, which not only finished the job right, but also gave me complete confidence that they're working GREAT!

    Reply
    • turbodb
      turbodb April 15, 2024

      Awesome, glad you found the guide useful Ed! I’ve learned so much from the community as I got into my Tacoma that it’s been nice to be able to give back a bit.

      If you have a chance, I'd love a positive review on Google (even just a copy-paste of your comment), it turns out they help with search results lot more than I originally realized they do!

      And as always, please feel free to reach out any time with questions - I'm always happy to help with this stuff! 👍

      Reply
  25. Julian Augustus
    Julian Augustus April 18, 2024

    G'day... This is from far down under, in Tasmania. Your to do's instruction's are one of the best I have comes across mate. Great work. I have a 1999 Land Cruiser Prado, similar to 3rd Gen 4Runner. They share most of the front end of the wagon.

    I'm very keen on upgrading to the Tundra brakes. However, it is very difficult or next to impossible to get parts here in Tasmania or even to be shipped. I can get DBA Rotors delivered, but they come in a variety of diameters 275mm, 318mm & 354mm.

    https://dba.com.au/search-results/?_product_no=db1838ss%2Cdb1838sp%2Cdb1838xp%2Cdba2740e%2Cdba2740s%2Cdba2740x%2Cdba47420%2Cdba47420s%2Cdba47420xs%2Cdba2724e%2Cdba2724s%2Cdba2724x%2Cdba42724%2Cdba42724s%2Cdba42724xs%2Cdbas1660&vehicle_description=4D%20Utili%2C%204WD%205TBDT4#1%20%20%5BUSA%5D,%20AT&vehicle_id=154616900&_sort_woocommerce_2=shop_order

    Any possibilities to know what size rotors I can use for the upgrade. I'll have to figure out a way to get the rest of the parts delivered to Tasmania.

    "Cheers mate, I really appreciate it!"

    Reply
    • turbodb
      turbodb April 19, 2024

      Hey Julian, Glad to hear you've found the write-ups that they're useful for you! As far as rotor diameter - I'm not sure of the measured diameter, except to say that they should be the same diameter as your stock rotors. The difference with the Tundra rotors is that they are thicker. You can see a comparison here: Hard to find Specs, Info & Measurements on 231mm 13WL Tundra Calipers & Rotors (archive). Of course, besides diameter, you'll also need to be sure to get the right bolt pattern and positioning of the rotor on the hub, so it's centered on the caliper correctly, as the Tundra rotor would be.

      Hope that helps!

      Reply
      • Julian Augustus
        Julian Augustus April 21, 2024

        Thanks for the reply. My 99 3.4L 5VZFE Prado has stock S13WM calipers and I’m running 319mm slotted rotors which has 6 lugs.
